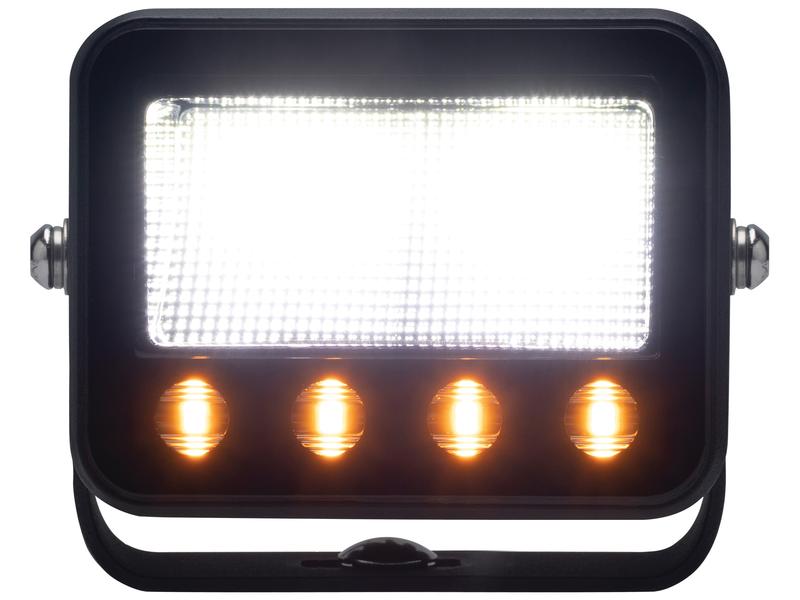

LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V Image 1

  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 1
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 2
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 3
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 4
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 5
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 6
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 7
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V 8
  • LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V
LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V - Image 3

LED Work Light – High Power LED with Warning Light, Flood Beam, Lumens Raw 3600, 9-36V

Make: 65

S.170644

Weight: 0.68kg
Interference Class 3
2 Function, Single Flash, Double Flash
Overall height 75mm
Overall length 97mm
Cable length 300mm
Beam Angle 55°
IP69K
Reg 65 - E9 65R00/11674100, Reg 148 - E9 148R00/03610200
DT Connector
 View Product Specifications
View Suitable For View OEM Part Numbers
Related Items
Alternative Products
LED Work Light Bar with Warning Light Flood Beam Lumens Raw 3200 Overall length 192mm 9-36V
Make: 65
S.170645 - LED Work Light Bar with Warning Light Flood Beam Lumens Raw 3200 Overall length 192mm 9-36V
Product Specifications

Specifications

Interference Class 3
2 Function, Single Flash, Double Flash
Overall height 75mm
Overall length 97mm
Cable length 300mm
Beam Angle 55°
IP69K
Reg 65 - E9 65R00/11674100, Reg 148 - E9 148R00/03610200
DT Connector
Sparex
Alternative to
LED Work Light Bar with Warning Light Flood Beam Lumens Raw 3200 Overall length 192mm 9-36VS.170645https://75025d40dd58ab042ef4-3509ef0b9210fbf84c18b36ced24de7a.ssl.cf3.rackcdn.com/imagelibrary_sml/170645_pic1.jpgSparexInterference Class 3 2 Function, Single Flash, Double Flash Overall height 52mm Cable length 250mm Beam Angle 80° IP Rating IP69K ECE Rating Reg 65 - E9 65R00/10667800, Reg 148 - E9 148R00/02667800 DT ConnectorS.170645
Barcode 128
S.170644
Barcode EAN13
5045161706441
Beam Angle
55°
Beam Type
Flood Beam
Brand
Sparex
Cable length (mm)
300
CE Approved
Yes
Connection Type
DT Connector
ECE Rating
Reg 65 - E9 65R00/11674100, Reg 148 - E9 148R00/03610200
Effective Lumens
2900
Fixing:
Bracket
Function
2 Function, Single Flash, Double Flash
Housing Material
Aluminium
Interference EMC EMI CISPR 25 Description
Class 3: Acceptable electromagnetic interferences level
Interference EMC EMI CISPR 25
Class 3
IP Rating
IP69K
Lens Colour
Clear
Lens Material
Plastic Safety Glass
Lighting Series
Standard LED
Light source
LED
Lumens Raw
3600
Lux Value
1lux @ 70m
Notes
Bracket included
Number of LEDs:
2 LEDs
Overall height (ins)
2-61/64
Overall height (mm)
75
Overall length (ins)
3-13/16
Overall length (mm)
97
Overall width (ins)
2-3/4
Overall width (mm)
70
Power Consumption @ 12V:
2.7Amps
Power Consumption @ 24V:
1.30Amps
RoHS Approved
Yes
SAE Approved
No
Shape
Square
Tariff Code
8539213000
Volts
9-36V
With Noise Suppression
Yes
Working Temperature °C
-40° to 60°
